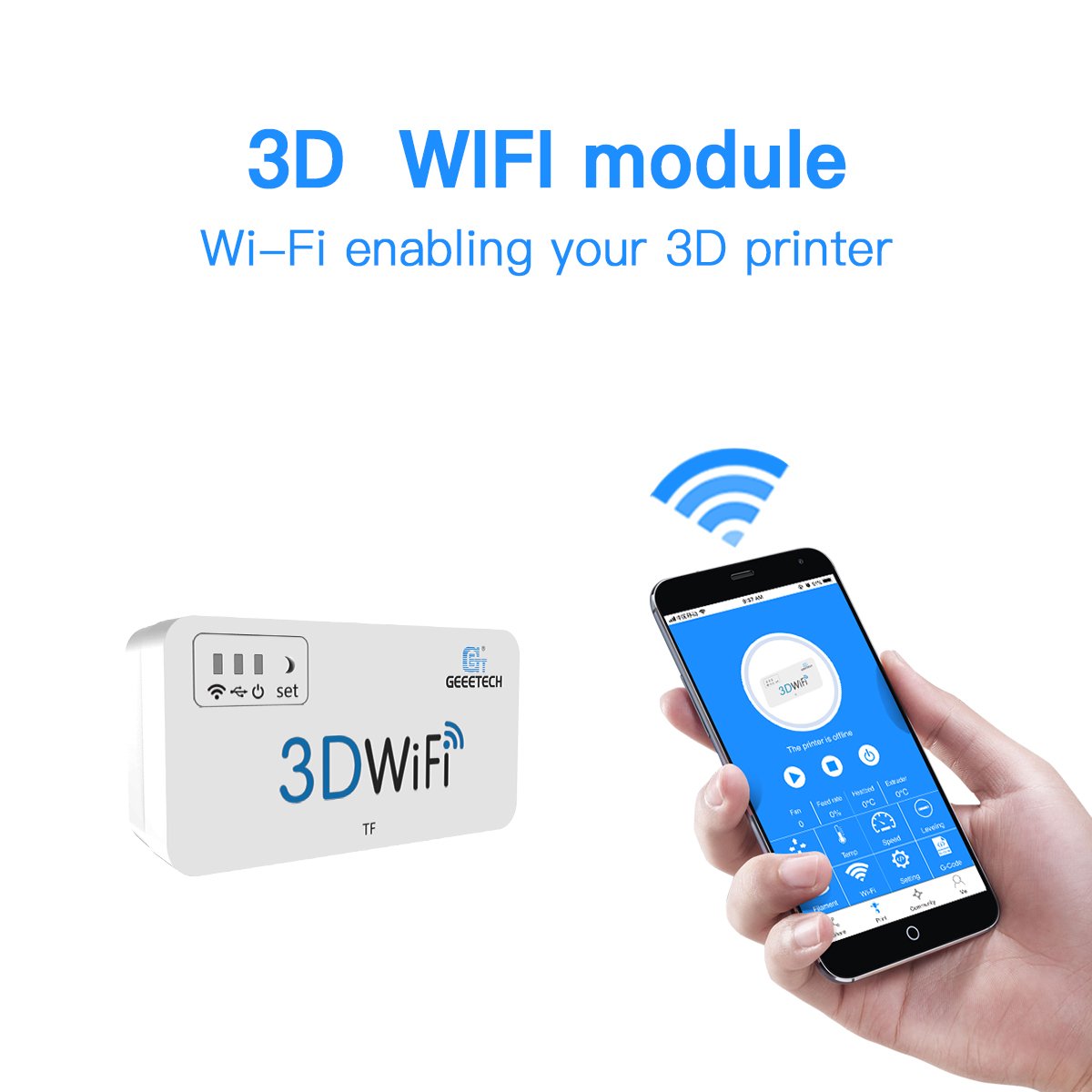

Geeetech developed 3D WiFi Module, with the aim of enabling all of the 3D printing hobbyists to Keep an eye on their printer wirelessly. 3D WiFi Module is mainly composed of two parts: Keep an eye on board and Wi-Fi module. Thumb-size as it is, it is powerful enough to connect your 3D printer with Geeetech’s cloud server, making it a reality so that you can Keep an eye on your device on EasyPrint 3D App.
Which are compatible 3d printers?
·All the Geeetech 3d printers ✓
·Creality CR-10✓
·Anycubic I3 Mega✓
·Ante A8✓
·Mono price Make a choice✓
·And so on
Specification
CPU:STM32F107 +ESP8266
power supply: 5V DC
Working current: 150mA(on average),500mA(peak)
USB 2.0 full-speed host
TF card give a boost to: SDSC,SDHC(<32G);CLASS2,CLASS4
WIFI
Frequency: 2.4G~2.5G (2400M~2483.5M)
Transmission power:
802.11b: + 20 dBm
802.11g: +17 dBm
802.11n: +14 dBm
Receiving sensitivity:
802.11b: -91 dBm (11 Mbps)
802.11g: -75 dBm (54 Mbps)
802.11n: -72 dBm (MCS7)
Antenna: PCB on-board antenna
Wi-Fi mode: Station/SoftAP
WLAN standard: 802.11 b/g/n/
Security mechanism: WPA/WPA2
Encryption Type: WEP/TKIP/AES
Network protocol: IPv4、TCP/UDP/HTTP/FTP/MQTT
Size: 49.37*25.87*16.5mm
Packaging size: 52.44*28.94*17mm
1. Tumb-size but Powerful:
Integrated with Keep an eye on board and Wi-Fi module. These two parts could seamlessly connect your 3D printer with our cloud server and Keep an eye on the device freely by way of EasyPrint 3D App.
2. Easy-to-Use:
Just want to connect 3D printer to the USB port and complete simple configurations on EasyPrint 3D App, then Keep an eye on the device wireless.
3. Fast & Stable:
Adopting high-performance chips and professionally coded by our devoted engineers, it could send commands and files from the cloud server to your 3D printer in a fast and stable fashion.
4. Remote Keep an eye on:
EasyPrint 3D App makes it a reality so that you can remote Keep an eye on 3d printer in real time. You’ll set the relevant printing parameters and receive instant notifications right through printing.
5. High Compatibility:
Compatible with most 3D printers. The compatible conditions are that the USB to serial chip of your printer belongs to this type of three ones (CH340, FT232 and PL2303), and the 3d printer is controlled by G.code instructions.
